Diamond DA62

€ 1.200.000

Resumen

Vista general
Tipo:	Multimotor
Fabricante:	Diamond
Modelo:	DA62
Año de construcción:	2022
Reg-No.:	OK-KEV
Cualidades:	IFR autorizado
Lugar:	Rep. Checa, Prague, PRG
Tiempo total (TTAF):	725 h
Precio:	€ 1.200.000
Impuesto según UE:	no
Todos detalles

Oferente
777 Aircraft Sales Appel Systems Online Steubstraße 6 86551 Aichach Alemania Tel.: 004915678878339
Contacte el oferente




Mostra todos 10 imagenes

Detalles

Vista general
Tipo:	Multimotor
Fabricante:	Diamond
Modelo:	DA62
Año de construcción:	2022
Reg-No.:	OK-KEV
Cualidades:	IFR autorizado
Lugar:	Rep. Checa, Prague, PRG
Tiempo total (TTAF):	725 h
Precio:	€ 1.200.000
Impuesto según UE:	no

Motores
Número de motores:	2
Fabricante/tipo:	AUSTRO AE330	AUSTRO AE330
Número de serie:	E4P-C-06118	E4P-C-06535
Efecto:	134.23 kW	134.23 kW
Tiempo total:	725 h	105 h
TBO (horas):	1800 h	1800 h
Prop fabricante / tipo:	MTV-6-R-C-F/CF194-80	MTV-6-R-C-F/CF194-80
Prop tiempo total:	725 h	725 h

Describcíon/Detalles motores

Year: 2022
Manufacturer: DIAMOND
Model: DA62
Serial Number: 62.192
Registration #: OK-KEV
Condition: Used
Flight Rules: IFR
Based At: PRG
Description:

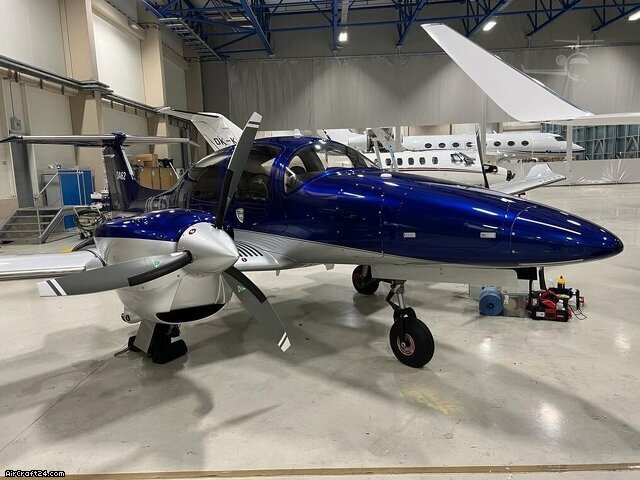

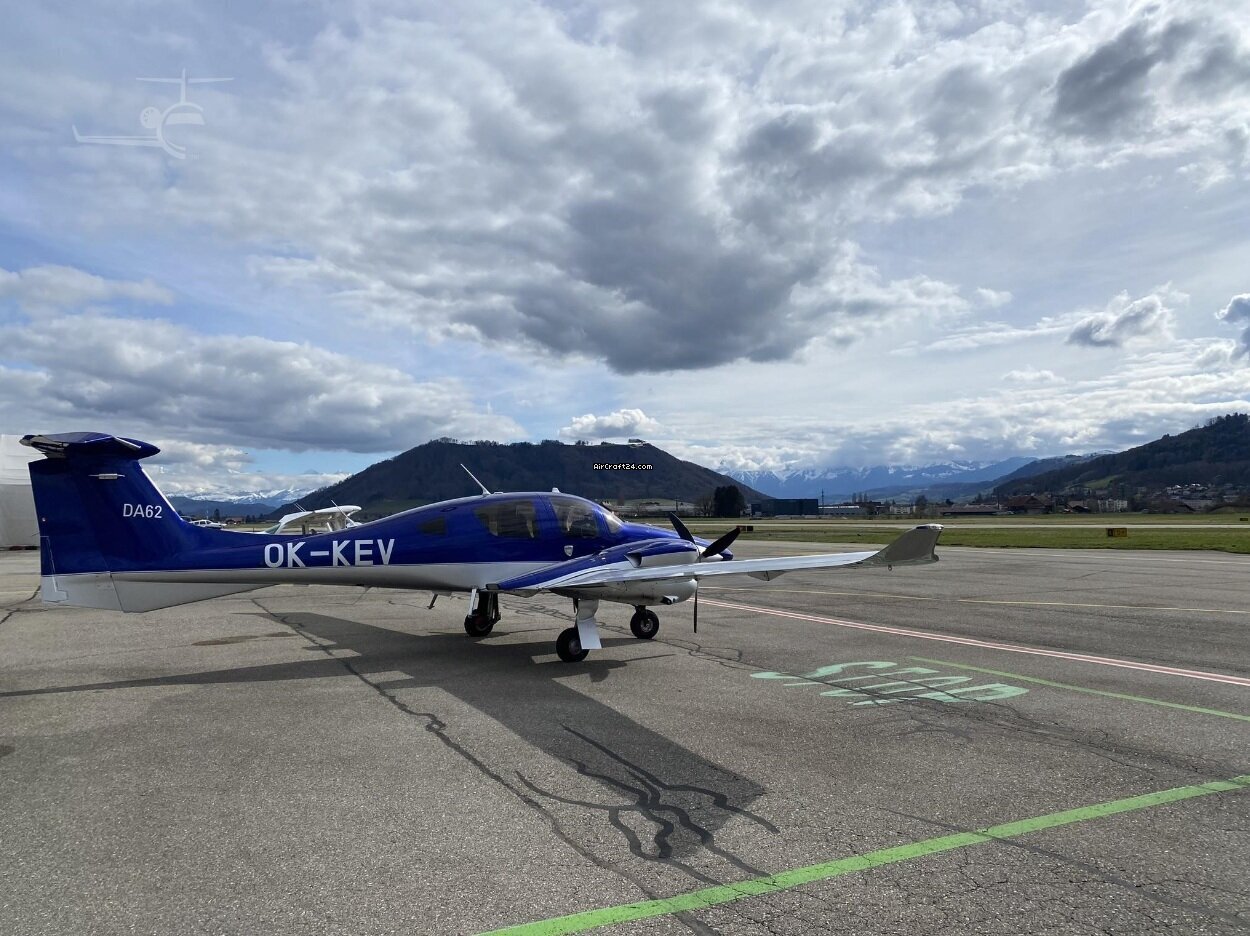

This 2022 Diamond DA62 is an outstanding example for buyers seeking performance, safety, and comfort. It features all avionics options, a brand-new right engine, and both engines have received full new piston replacement, which means MSB-E4-039 and MSB-E4-043 no longer apply to this aircraft.
It boasts an exceptional array of optional equipment, including air conditioning, TKS de-icing system, and oxygen system for all occupants. Fully equipped with Garmin G1000 NXi avionics, it also includes advanced safety features such as weather radar, synthetic vision, datalink, and traffic advisory system.
Owned by a single owner since new, with no damage history. It comes in a 5-seat configuration for reduced weight and increased baggage space. Optional 7-seat and 4-seat business configurations are available upon request, with manufacturer retrofit approval in place.

Total Time: 725
Range: 1,300 NM
Max Takeoff Weight: 5,070.63 lb
Basic Empty Weight: 3,765.5 lb
Useful Load: 1,305.14 lb
Fuel Capacity Volume: 86 gal
Auxiliary Fuel Tank: Yes
Complete Logs: Yes
Airframe Notes:
- Professionally maintained with all service completed at certified Diamond centres - Seating Configuration of 5 seats with a spacious 900-liter baggage area (with possibility to upgrade to 7 seats configuration or 4 seats business configuration) - Custom dog bed available for the baggage area - Premium metallic exterior in DELIGHT SAN MARINO BLUE

Engine 1
Manufacturer: AUSTRO
Model: AE330
Serial Number: E4P-C-06118
Horsepower: 180 HP
Time: 725
Time Since: SNEW
TBO: 1800
Year Installed/New: 2022
Time Remaining: 1075
Cycles: 374
Turbocharged: Yes
Engine 1 Notes:
- Engine Type: Austro Engine AE330 180HP, turbocharged common-rail injected 2.0-liter Jet A-1 engine - Engine Control System: EECU single-lever control system for optimal engine management - Received full new piston replacement which means MSB-E4-039 and MSB-E4-043 no longer apply to this aircraft
Engine 2
Manufacturer: AUSTRO
Model: AE330
Serial Number: E4P-C-06535
Horsepower: 180 HP
Time: 105
Time Since: SNEW
TBO: 1800
Year Installed/New: 2024
Time Remaining: 1695
Cycles: 58
Turbocharged: Yes
Engine 2 Notes:
- Engine Type: Austro Engine AE330 180HP, turbocharged common-rail injected 2.0-liter Jet A-1 engine - Engine Control System: EECU single-lever control system for optimal engine management - Received full new piston replacement which means MSB-E4-039 and MSB-E4-043 no longer apply to this aircraft
Props
Prop 1 Manufacturer: MT
Prop 1 Model: MTV-6-R-C-F/CF194-80
Prop 1 Time: 725
Prop 1 Time Since: SNEW
Prop 2 Manufacturer: MT
Prop 2 Model: MTV-6-R-C-F/CF194-80
Prop 2 Time: 725
Prop 2 Time Since: SNEW
Number of Blades: 3
Blade Composition: Composite
Swept Blade Propellers: Yes
Prop Notes:
- Propellers: MTV-6-R- C-F/CF 194-80, 3-blade constant-speed propeller for superior performance in perfect condition

Aviación

Flight Deck Manufacturer: GARMIN
Flight Deck Model: G1000 NXi
Primary Flight Display: GDU1050
Multi-Function Display: GDU1050
GPS 1: GIA64W
GPS 2: GIA64W
Transponder: GTX335R
Autopilot: GFC700
ADS-B Equipped: Yes
WAAS: Yes
LPV: Yes
SVT: Yes
Yaw Damper: Yes
Active Traffic: Yes
Terrain Warning System: Yes
Engine Monitor: Yes
Avionics / Radios:
- 2x Garmin GDU 105x 10-inch flight displays (primary function and multifunction) - Garmin GEA 71B Airframe/Engine Interface Unit - 2x Garmin GIA 64 W COM/NAV/SBAS-GPS/GS/LOC - Garmin GMA 1360 Digital Audio System - Garmin GRS 79 Attitude Heading Reference System - Garmin GDC 72 Digital Air Data Computer - Garmin GMU 44 Magnetometer - Garmin GFC 700 Automatic Flight Control System with Yaw Damper - Garmin GTX 335 R Remote ADS-B Out Transponder - Garmin Synthetic Vision Technology (SVT) - Garmin ChartView Approach Plates - ELT 406 MHz - Digital Standby Attitude Module (MD-302 SAM) - Garmin Flight Stream 510 - Jeppesen PilotPak (IFR Bundle) - Garmin ESP (Electronic Stability & Protection)

Equipo

Additional Equipment
Oxygen System: Yes
FIKI: Yes
Inadvertent Ice Protection: Yes
Air Conditioning: Yes

Additional Equipment Notes:
- TKS Deicing System on leading edges of wings, horizontal/vertical stabilizers, and propellers - Big oxygen tank with distribution to all passengers - Air conditioning perfect for hot environment - Long-range fuel tanks: 86 USG - Canopy and nose cover (grey) included - 2300kg MTOW

Exterior
Year Painted: 2022 Exterior Notes: - Premium metallic exterior in DELIGHT SAN MARINO BLUE

Interior

Year Interior: 2022
Number of Seats: 5
Configuration: Passenger

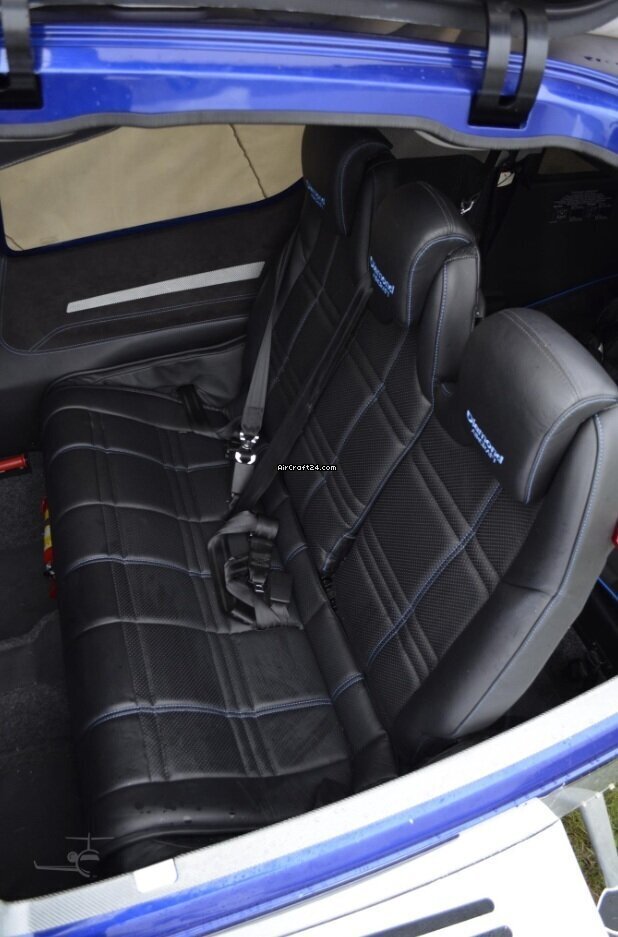

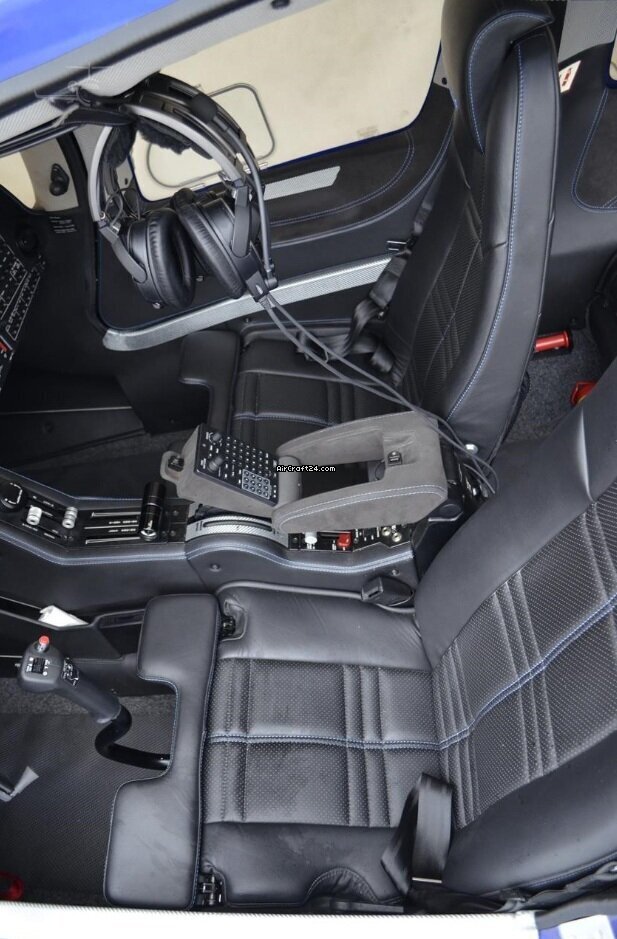

Interior Notes:

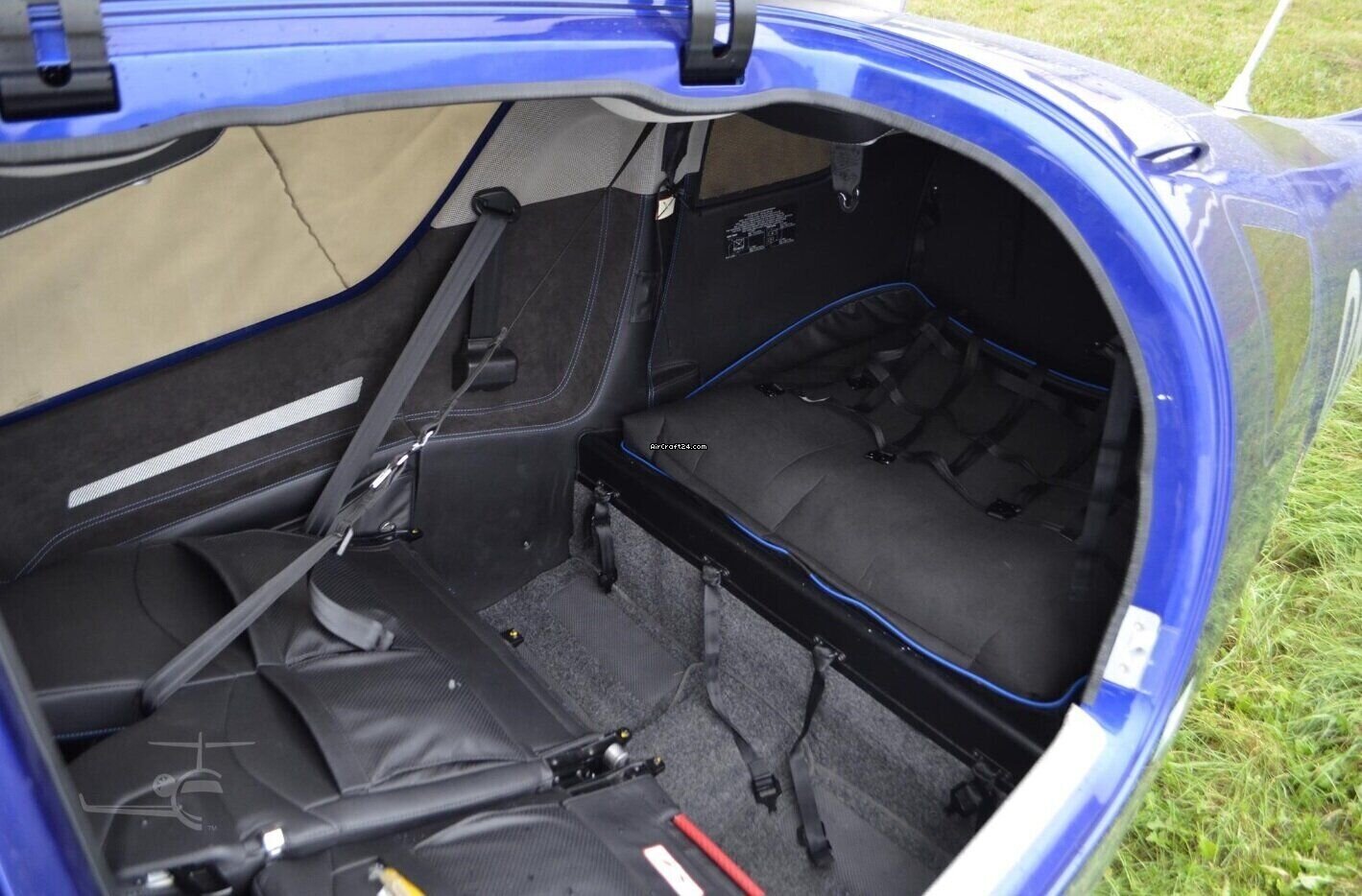

- Air conditioning - Baggage Area: 900 liters, capable of holding up to 120 kg - Built-in tablet mount provisions (A-columns) - Removable right-hand control stick - Professional sunshades for PAX rows 2 and 3 - Oxygen supply for all occupants - Custom-made dog bed for the baggage area - All interior will be professionally cleaned prior to delivery
