Bell 212 |
Consultar precio |
Resumen
| Vista general | | Tipo: | Helicóptero (Motor a reacción) | | Fabricante: | Bell | | Modelo: | 212 | | Año de construcción: | 1979 | | Reg-No.: | A7-HBO | | No. serial: | 30911 | | Lugar: | Qatar, Doha | | Tiempo total (TTAF): | 20682 h | | Precio: | Consultar precio | | Todos detalles |
| Oferente |
Feilhauer Aircraft Sales
P.O. Box 87
1217 Meyrin 1
Suiza
Tel.: +41 22 782 98 00
Fax: +41 22 782 98 11 |
| Contacte el oferente |
|
|
|
Detalles
| Vista general | | Tipo: | Helicóptero (Motor a reacción) | | Fabricante: | Bell | | Modelo: | 212 | | Año de construcción: | 1979 | | Reg-No.: | A7-HBO | | No. serial: | 30911 | | Lugar: | Qatar, Doha | | Tiempo total (TTAF): | 20682 h | | Precio: | Consultar precio |
| Motores | | Número de motores: | 2 | | Fabricante/tipo: | Pratt & Whitney PT6T-3B |
| Describcíon/Detalles motores | Engine N° 1 : Removed
Engine N° 2 : TSO : 4.801,60 Hours |
| Aviación | - Dual Panel Cockpit Instruments
- Two King KTR-905 VHF Radios
- Two King KDF-805 ADF
- King KNR-630 VOR/ILS
- King KDM-705 DME
- King MKR-675 Marker
- King KXP-755 Transponder with Mode C
- Sperry AA300 & AVAD Radio Altimeter
- RS-811A Weather Radar
- Garmin 165 Area Navigational Aid GPS
- Cockpit Voice Recorder
- NAT 150/450 FM Comm
- Flight Crew / Passenger Intercom System
- ELT 406 |
| Equipo | - Dual Controls
- Rotor Brake
- Undersling Load Hook and Role Equipment Provisions
- Stretcher Provisions
- Emergency Flotation Gear
- 2 x 10 man Reversible Liferafts and Survival Packs
- Crew Lifejackets with Emergency Sarbe Beacons
- 13x Passenger Lifejackets
- Two Fire Extinguishers
- First Aid Kit |
| Exterior | | - Paint : White, Red, Green and Brown |
| Status de inspección | - Helicopter is unserviceable, due for D-Check and currently under Preservation/Storage.
Description / TSN-TSO / Time Remaining
- Main Rotor Blade / --- / Removed
- Main Rotor Blade / --- / Removed
- Main Rotor Hub Assy / --- / Removed
- Main Rotor Mast / 3.171,10 / 1.828,90
- Main Transmission / 1.610,70 / 4.389,30
- Scissor and Sleeve / 97,10 / 902,90
- Swashplate and Support / --- / Removed
- 42° Gearbox / --- / Removed
- 90° Gearbox / --- / Removed
- Tail Rotor Hub / 392,70 / 607,30
- Tail Rotor Blade / --- / Removed
- Tail Rotor Blade / --- / Removed
- Power Section 1 / --- / Removed
- Power Section 2 / 10.265,18 - 4.801,60 / 698,40
- Combining Gearbox / 3.051,50 / 948,50 |
| Observación / Otro | | - If some of the components which have been removed are required, they can be delivered with the helicopter and price adjusted accordingly. |

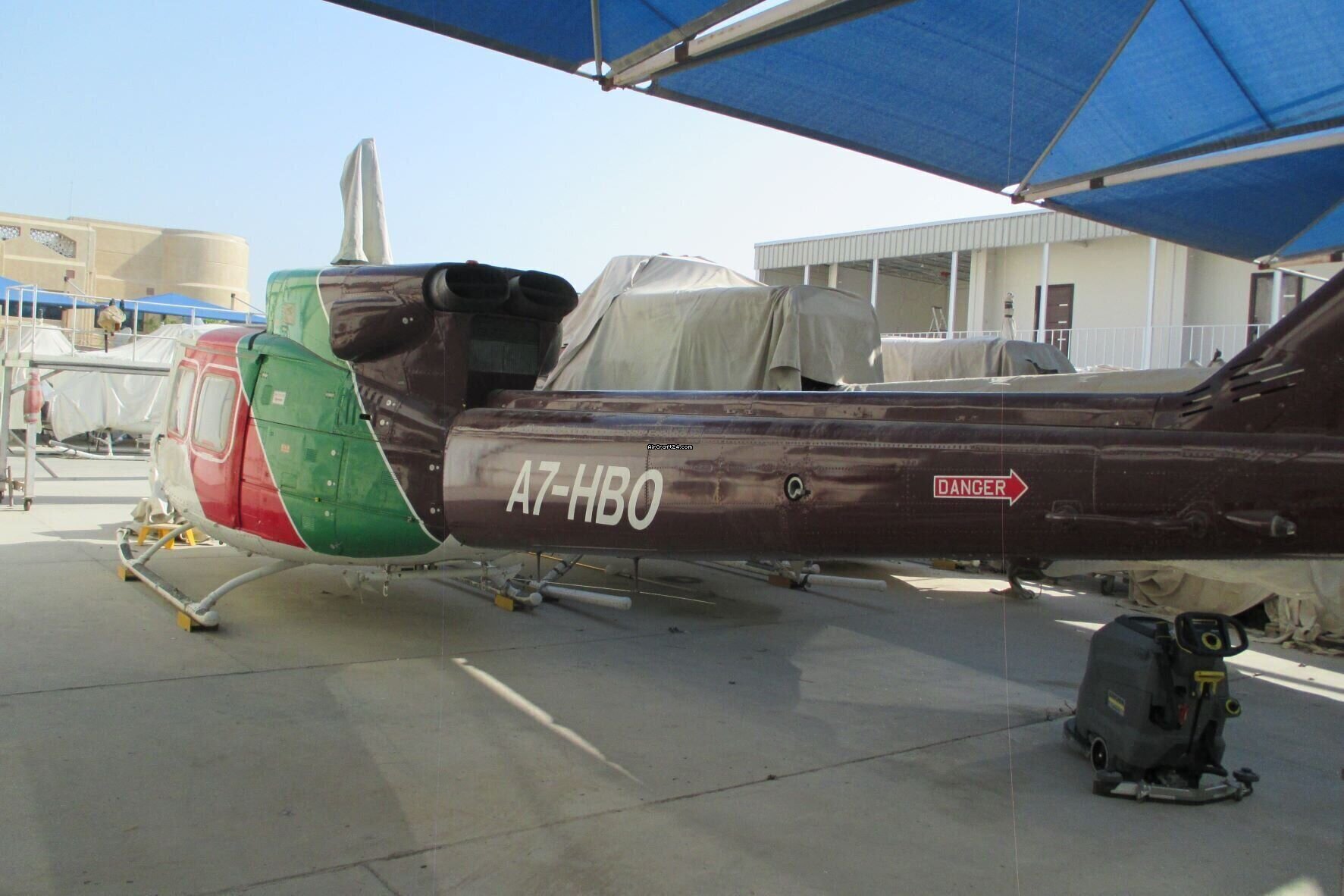

Fotos
